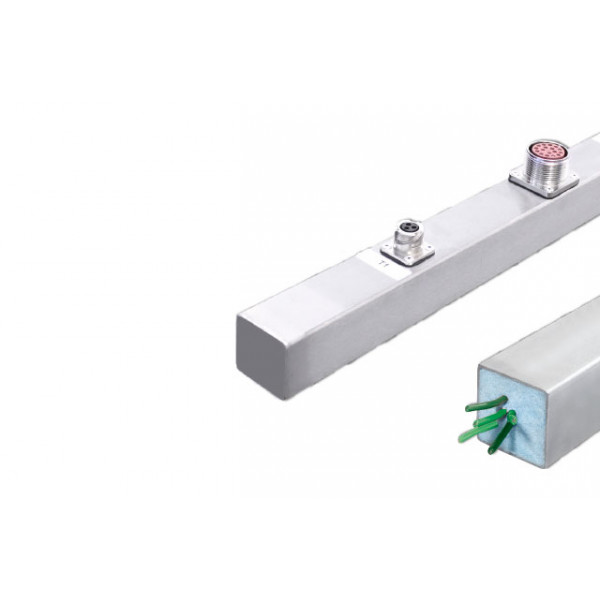

MOTORTECH AlphaRail Wiring Rail System for Temperature Control

MOTORTECH AlphaRail Wiring Rail System for Temperature Control
  • Up to 10 thermocouple inputs per rail
  • As standard each rail comes with 2 additional thermocouple inputs for temperature measurement pre and post turbocharger
  • All thermocouples need to be Type K (NiCrNi)
  • Made of stainless steel which performs better than aluminum in harsh environments (and where operators use any kind of equipment to hold or stand on)
  • Made to perfectly fit the application
  • Rigid military style connectors are securely fastened into the stainless steel
  • Rails are filled with special foam to ensure that all wires are separated from ground and will not vibrate and eventually short out to ground
  • Water proof design – built to last in uncovered environment
  • Repairable by MOTORTECH’s assigned distributors in

The stainless steel wiring rails which are water tight due to a well approved foaming process, offer an easy and fast installation of accessory control systems such as

  • Temperature control
  • Gas valve systems

With individual outlet port connectors, the sensors can be individually connected and easily wired to the rail. A disconnectable main harness routs all sensors to one main control unit or individual wiring boxes.
