MOTORTECH ALL-IN-ONE Generator & CHP Control System

MOTORTECH ALL-IN-ONE Generator & CHP Control System
  • Support of engines with ECU (Electronic control unit)
  • Individually configurable to match customer’s needs exactly
  • Complete integrated gen-set solution incorporating built-in PLC and signal sharing via CAN bus – minimum external components needed
  • Many communication options – easy remote supervising and servicing
  • Perfect price / performance ratio
  • Gen-set performance log for easy problem tracing
  • Air/Fuel Ratio function for lean burn gas engines (requires additional hardware dongle)

For monitoring, controlling, regulating and system protection. ALL-IN-ONE is an expandable controller for both single and multiple gen-sets operating in standby or parallel modes, especially in cogeneration (CHP) and other complex applications.

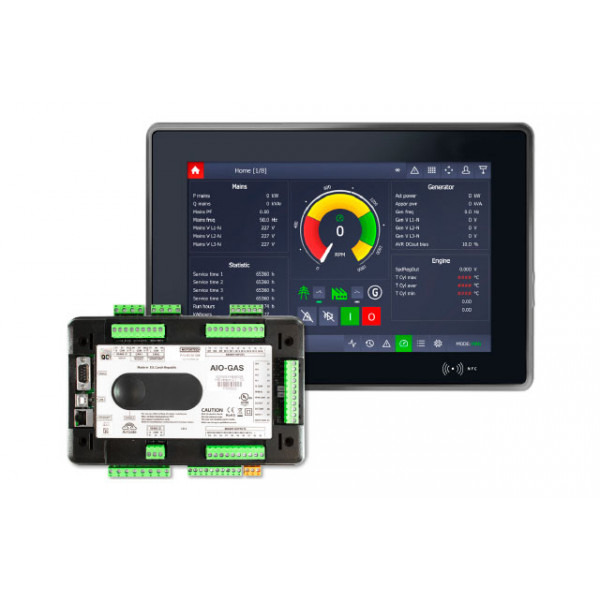

Modular design (consisting of AIO controller and display unit) allows easy installation with the ability to add many different extension modules designed to suit individual customer requirements.

Integrated functions such as fully automatic synchronization or uninterruptible back-synchronisation in mains parallel operation as well as integrated solutions for multi-unit operation, load sharing or automatic operating hours adjustment of the individual units are standard features of the AIO generator & CHP control system. Up to 32 units can be combined in one group.

AIO supports many standard ECU (electronic control unit) types from which it can read relevant control data via Bus. A powerful graphic display with user-friendly controls allows any operator to find the information they need. The display on the basic version is capable of displaying graphical characters (e.g. Chinese).
