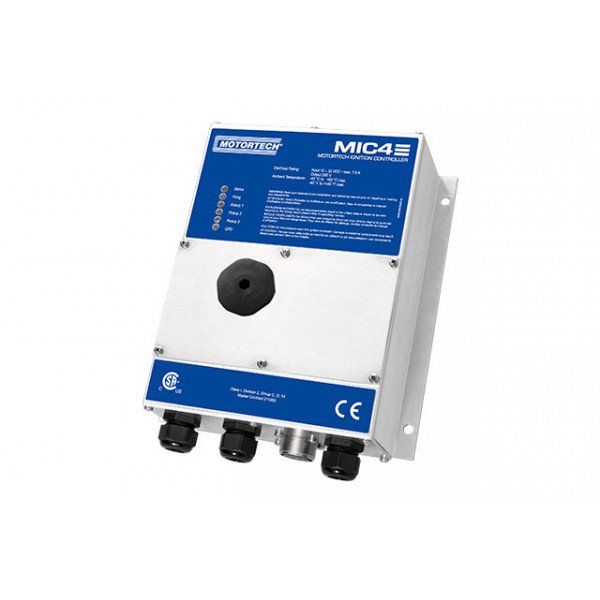

MOTORTECH MIC4 Series Ignition Controller
- 10 to 32 VDC supply voltage
- 8 / 16 ignition outputs
- 250 VDC primary voltage
- 300 mJ primary energy
- 0.1° crankshaft accuracy
- Triggered by 1, 2 or 3 pickups (magnetic, hall effect or inductive / configurable)
- Multiple timing control vs.
- – Potentiometer
- – Speed curve
- – 0-20 mA analog input
- – 0-10 V analog input
- Multiple energy control vs. MOST (MOTORTECH Output Stage Technology)
- Programmable firing order
- 1 multipurpose output (GPO)
- 1 Auxiliary Synchronization Output (ASO) which can support a detonation control system (e.g. DetCon) or fuel injection pump controllers
- Ignition release input
- Go / NoGo output
- Overspeed shutdown function
- Access controlled
The economically attractive MOTORTECH development convinces with a future oriented electronical concept for more power and a significantly higher degree of efficiency.
High ignition energy, accurate spark timing and diversified online diagnostics help to improve engine efficiency, spark plug life and availability of the equipment under the strictest emission regulations. The controller is fully customer configurable via Laptop.
